DCC Concepts

DCC Concepts - Zen Blue+ Decoder: NEM651 6-Pin Direct & Harness. 2 Function

Product Code: DCD-ZN68.2

Production Details:

Zen decoder software has always been smooth, clever and easy to use but our new decoder range takes this to a new level, with simple-to-use ONE step locomotive set-up and advanced brown-out protection. All of our decoders are tested at least 3 times before we package them for sale, so we know that they all work perfectly when we sell them and you can be quite confident that reliability is assured.  DCD-ZN68.2 replaces the previous version – DCD-ZN68.
Decoder features: ● 1.1 Amps peak power, ● 750mA continuous power, ● 2 functions at 100mA each, ● 13.5mm x 8.5mm, ● 6-pin direct, 6-pin harness and 8-pin harness, ● One-Step Loco Setup.

DCC Concepts - Zen Blue+ Decoder: 8 Pin NANO Direct - 4 Function

Product Code: DCD-ZN8D.4

Production Details:

Zen decoder software has always been smooth, clever and easy to use but our new decoder range takes this to a new level, with super-advanced brown-out protection and nano size. All of our decoders are tested at least 3 times before we package them for sale, so we know that they all work perfectly when we sell them and you can be quite confident that reliability is assured. DCD-ZN8D.4 replaces the previous version – DCD-ZN8D.
Decoder features: ● 1.1 Amps peak power, ● 750mA continuous power, ● 4 functions at 100mA each, ● 15mm x 7mm x 5mm (excluding pins), ● 8-pin direct, ● Brown-out protection, ● Stay-alive connection

DCC Concepts - Zen Blue+ Decoder: 8 Pin NANO Wired 2 Function

Product Code: DCD-ZN8H.nano

Production Details:

Zen NANO 8 Pin Wired 2 Function with Stay Alive connection. The ZN8H.nano is remarkably small! We started off with the world’s smallest, then shrunk it even more! With the same footprint as NANO 8-pin direct, we added wires… and shrunk it in thickness by nearly 50% to create a super-small go-anywhere wired decoder.
Decoder features: ● 1.1 Amps peak power, ● 750mA continuous power, ● 2 functions at 100mA each, ● 14mm x 7mm x 2.7mm, ● 8-pin harness, ● Brown-out protection, ● Stay-alive connection.

DCC Concepts - Zen 3-Wire Small Stay Alive for Zen Black & Blue+ Decoders

Product Code: DCD-SA3-SM.1

Production Details:

A single small Stay-Alive with 3-wire connections to the decoder. Totally Plug and Play with Zen decoders. Usable with Zen Black, Zen Blue+, Lenz and ESU or any decoder with three-wire connections for Stay-Alive. Please note: that connection of a DCCconcepts Zen Stay-Alive to a non-DCCconcepts decoder may invalidate your warranty, please check documentation which came with your decoder for details.

DCC Concepts - Zen 3-Wire Medium Stay Alive for Zen Black & Blue+ Decoders

Product Code: DCD-SA3-MD.1

Production Details:

A single medium Stay-Alive with 3-wire connections to the decoder. Totally Plug and Play with Zen decoders. Usable with Zen Black, Zen Blue+, Lenz and ESU or any decoder with three-wire connections for Stay-Alive. Please note: that connection of a DCCconcepts Zen Stay-Alive to a non-DCCconcepts decoder may invalidate your warranty, please check documentation which came with your decoder for details.

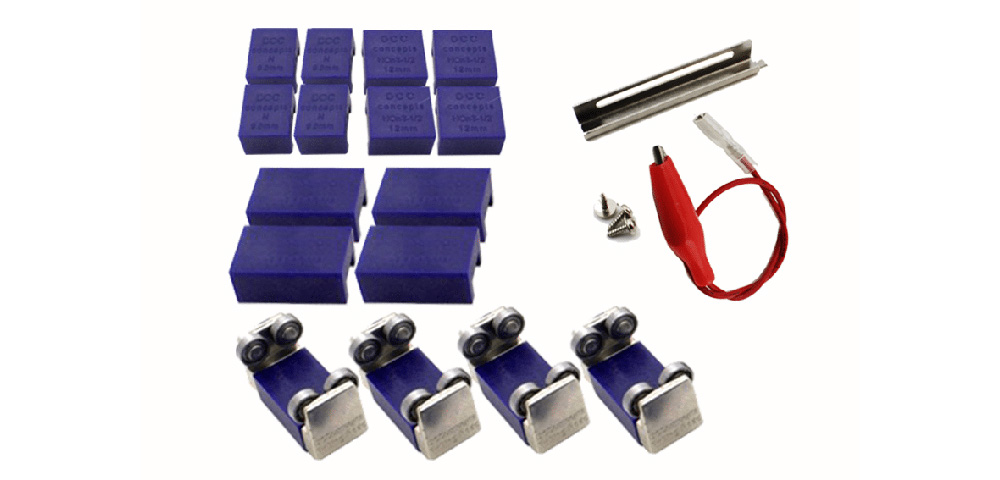

DCC Concepts - Rolling Road (Multi-Gauge) 4 Axle

Product Code: DCM-RRA4

Production Details:

DCCconcepts Rolling Roads are very easy to use… You simply place them on the track (spaced ready for your locomotive). Incredibly versatile, they help with running in, testing and evaluation of locomotive performance, active cleaning of driving wheels, simpler DCC Setup and all kinds of tweaking to be achieved in front of you, on the desk or workbench. Our Rolling Roads are very versatile too – While they come pre-set for 16.5mm or OO/HO track, we include in the pack full sets of spacers for each of the following track gauges. Change takes only moments with a small screwdriver and doing it is easy and problem free for novice and expert alike.

We have also thought about those collectors and modellers who enjoy and are preserving the history of our hobby by running the 3-rail models that really kick-started our hobby. So – to make sure our rolling roads are universal, we have added into all 4, 8 & 12 packs an adapter that is suitable for both Marklin and Hornby Dublo 3-rail use… so now everyone really IS taken care of!

Gauges: ● 9mm or N scale, 009 and HOn30/HOe (or HO scale 3’ gauge), ● 10.5mm or HOn3 scale, ● 12mm or TT, HOm (Metre gauge) (or HO scale 3’6” Narrow gauge), ● 16.5mm or HO, OO and On30 gauge, ● EM and P4 finescale spacers are available on request.

DCC Concepts - Rolling Road (Multi-Gauge) 8 Axle

Product Code: DCM-RRA8

Production Details:

DCCconcepts Rolling Roads are very easy to use… You simply place them on the track (spaced ready for your locomotive). Incredibly versatile, they help with running in, testing and evaluation of locomotive performance, active cleaning of driving wheels, simpler DCC Setup and all kinds of tweaking to be achieved in front of you, on the desk or workbench. DCCconcepts Rolling Roads are very versatile too – While they come pre-set for 16.5mm or OO/HO track, they include in the pack full sets of spacers for each of the following track gauges. Change takes only moments with a small screwdriver and doing it is easy and problem free for novice and expert alike.

Gauges: ● 9mm or N scale, 009 and HOe (or HO scale 3-foot gauge) ● 12mm or TT, HOm (Metre gauge) (or HO scale 3’6” Narrow gauge) ● 5mm or HO, OO and ON30 gauge ● EM and P4 finescale DCCconcepts have also thought about those collectors and modellers who enjoy and are preserving the history of our hobby by running the 3-rail models that really kick-started our hobby. So – to make sure these rolling roads are universal, they have added into all 4, 8 & 12 packs an adapter that is suitable for both Marklin and Hornby Dublo 3-rail use… so now everyone really IS taken care of!

DCC Concepts - COBALT iP Slow Action Digital Point Motor

Product Code: DCP-CB1DiP / DCP-CB6DiP / DCP-CB12DiP

Production Details:

Introducing Cobalt-iP Digital Cobalt-iP Digital is a new Cobalt DCC-on board product that adds on-board DCC control to the very best features of Cobalt Classic-O and Cobalt -iP to create the best ever digital-ready point motor.
With Cobalt-iP Digital, you can have your cake and eat it too, because it is 100% ready to go in digital format, yet it will also allow you to have a classic control panel with a choice of either one or two push-button switches per turnout, Super low current draw means you can use complex pre-set routes using the abilities already built in to most quality DCC control systems with no need to add anything else!

DCC Concepts - COBALT iP Slow Action Analogue Point Motor

Product Code: DCP-CB1iP / DCD-CB6iP / DCP-CB12iP

Production Details:

Introducing Cobalt-iP Analog Cobalt-iP Analog is a new Cobalt product that takes the very best features of Cobalt Classic-O and Cobalt Digital-iP to create something special that bridges the gap between Digital and Analog point motor control.
Throughout the design process we have focussed on taking what were already the best DCC-upgradable turnout motors available, the Cobalt Classic and Cobalt Classic- O, and making something really special for those who want just that little more or those who might prefer to use a separated layout control bus and computer control for the layout, while preserving DCC system usage for the thing it does best, the driving of trains!

DCC Concepts - Universal Solenoid Accessory Decoder (2 Output)

Product Code: ADS-2SX

Production Details:

Accessory Decoder CDU Solenoid Drive SX 2-Way with Power-Off Memory and Protective Case. ADS-S2sx is an easy-to-use 2-way accessory decoder for solenoids with power-off memory. ADS-2SX has a CDU built-in to each output and is the most reliable and most powerful solenoid decoder available, yet it stores all its power on-board so does not drain your DCC track power! Packed with features including a CDU discharge button, Panel LED or Signal Control, Push-Button Option and Frog Power Switching. (Replaces ADS-2FX)

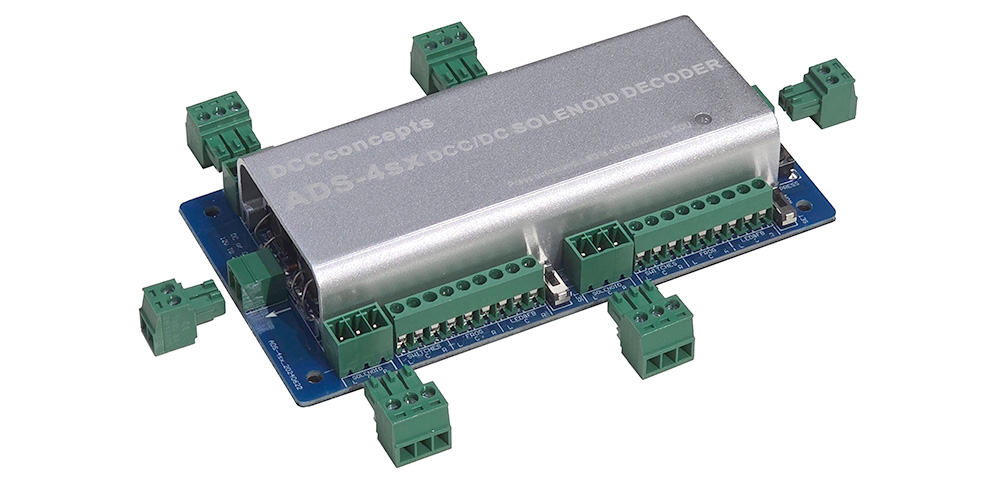

DCC Concepts - Universal Solenoid Accessory Decoder (4 Output)

Product Code: ADS-4SX

Production Details:

Accessory Decoder CDU Solenoid Drive SX 4-Way with Power-Off Memory and Protective Case. ADS-4sx is an easy-to-use 4-way DCC accessory decoder for solenoid turnout motors with power-off memory. ADS-4sx has a CDU built-in to each output and is the most reliable and most powerful solenoid decoder available, yet it stores all its power on-board so does not drain your DCC track power! Each channel also has a digitally addressable relay which has multiple uses including frog power control. Packed with features including a CDU discharge button, Panel LED or Signal Control, Push-Button Option and Frog Power Switching. Size: Width 115mm, Depth 64mm, Height 22mm. To make sure there is a version for every need, ADS Decoders are also available in 2 and 8 way variants.

DCC Concepts - Universal Solenoid Accessory Decoder (8 Output)

Product Code: ADS-8SX

Production Details:

Accessory Decoder CDU Solenoid Drive SX 8-Way with Power-Off Memory and Protective Case. ADS-8SX is supplied as 2x ADS-4SX accessory decoders. ADS-8SX has a CDU built-in to each output and is the most reliable and most powerful solenoid decoder available, yet it stores all its power on-board so does not drain your DCC track power! Packed with features including a CDU discharge button, Panel LED or Signal Control, Push-Button Option and Frog Power Switching.

DCC Concepts - Intelligent 3-Address Accessory Decoder

Product Code: DCD-ADiA.1

Production Details:

DCCconcepts ADiA Intelligent Accessory decoders have some very special features which make them totally unique. ● Fits snugly in the recess in every Cobalt turnout motor (using the pre-fitted foam pad) or you can mount it seperately with the screws provided. ● Simple to wire without soldering, ● Plug-and-play connectors for DCCconcepts magnetic or infra-red detectors. ● Drive one or two Cobalt iP Analog or Omega turnout motors. ● Three accessory addresses, each of which can have it’s own throw direction to suit a specific route - use for route control or interlocking! ● Built-in switch connections for external control.

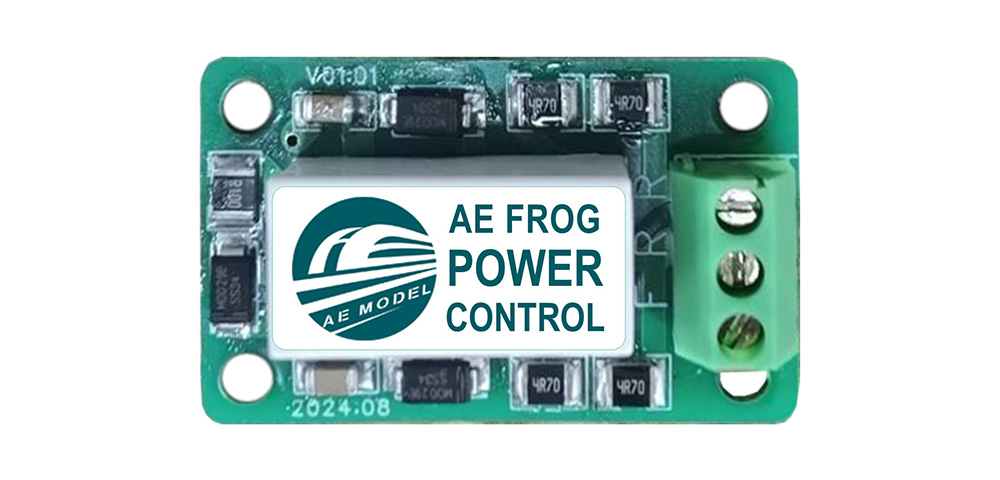

DCC Concepts - AE Model Frog Power Control for DCC

Product Code: AET-FPC.1

Production Details:

AE Model Frog Power Control (Single Pack). Traditional solenoid turnout motors often have a real shortcoming… they are not equipped with a way to reliably change the polarity of the turnout frog unless you buy an expensive mechanical switch to add to them, which in turn means harder installation, and, because of the added load when the turnout changes, operation becomes less reliable. The AE Model Frog Power Control unit fixes these problems economically with 100% success and almost zero effort. Even better, unlike other “frog juicers”, there is no need for added soldering. Just connect the frog and track power wires as shown in the diagram – 1, 2, 3 done!
1) Connect the two terminals labelled “R” to your track bus.
2) Connect the terminal labelled “F” to your turnout “frog”.
Developed with advice from the real DCC experts, the AE Model Frog Power Control makes installation easier, limits the possibility of voltage spikes on your track bus and removes the risk of unwanted short circuits.

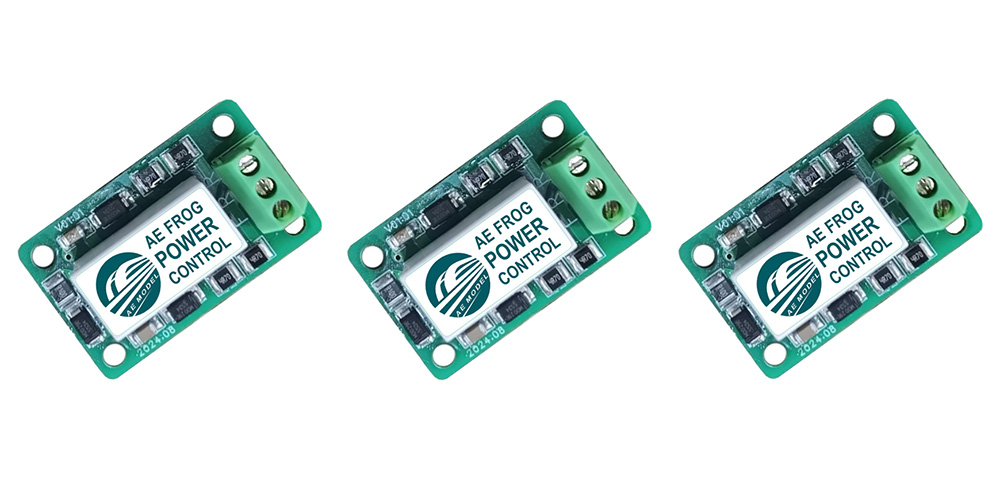

DCC Concepts - AE Model Frog Power Control for DCC (3 Pack)

Product Code: AET-FPC.3

Production Details:

AE Model Frog Power Control (3 Pack). Traditional solenoid turnout motors often have a real shortcoming… they are not equipped with a way to reliably change the polarity of the turnout frog unless you buy an expensive mechanical switch to add to them, which in turn means harder installation, and, because of the added load when the turnout changes, operation becomes less reliable. The AE Model Frog Power Control unit fixes these problems economically with 100% success and almost zero effort. Even better, unlike other “frog juicers”, there is no need for added soldering. Just connect the frog and track power wires as shown in the diagram – 1, 2, 3 done!
1) Connect the two terminals labelled “R” to your track bus.
2) Connect the the terminal labelled “F” to your turnout “frog”.
Developed with advice from the real DCC experts, the AE Model Frog Power Control makes installation easier, limits the possibility of voltage spikes on your track bus and removes the risk of unwanted short circuits.

DCC Concepts - ALPHA Mimic Ground Signal Pack (12) & Controller - BR 3 Light

Product Code: DCD-MGS-BR

Production Details:

ALPHA MIMIC 12x LMS/BR Ground Signal. A pack of 12 x 3-lamp plug and play signals in 4mm scale (OO), complete with control board and accessories.

The DCD-MGS-BR is the classic 3-lamp ground signal. It was first introduced in the mid 1930's and spread far and wide. Most are still in use today. This makes it a great choice for layouts of many prototypes and periods.

DCC Concepts - ALPHA Mimic Ground Signal Pack (12) & Controller- UK 2 Light

Product Code: DCD-MGS-RG

Production Details:

ALPHA MIMIC 12x Red/Green Ground Signal. A pack of 12 x 2-lamp plug and play signals in 4mm scale (OO), complete with control board and accessories.
The DCD-MGS-RG is a simple design 2-lamp ground signal that was first seen on a limited basis in the 1920's in the UK, but it was very widely used internationally. In addition to its world-wide use, it is also perhaps the perfect "indicator signal" for those with large storage or fiddle yards, giving a clear  "Red/Green" indication of track access if used for this.

DCC Concepts - 2 x Brass Power Distribution Bars

Product Code: DCC-BBAR2

Production Details:

Pack of TWO solid brass power distribution bars. The hobby has looked for something like this at an affordable price for a very long time! DCCconcepts has created these tough, machined brass 'power bus' distribution bars with insulated, swivelling feet especially for DCC layout wiring. Capable of carrying huge current, they have 1x6mm access hole for the largest power bus and 6x4.5mm holes for power distribution. Each connection point has a Pozidrive head machine screw for really reliable connections.

DCC Concepts - PowerBase Starter Kit (OO/HO Gauge)

Product Code: DCX-PBKIT

Production Details:

DCC Concepts - PowerBase Starter Kit. For OO/HO and larger scales. Contains 25x/2.5 Metres of PowerBase Centipede Plates, 6 magnets and 6+ housings, plus pan head screws to assist magnet mounting. (enough for 2-3 4mm scale locomotives).

DCC Concepts - PowerBase Value Pack (OO/HO Gauge)

Product Code: DCX-PBVP

Production Details:

DCC Concepts PowerBase Value Pack (OO/HO Gauge). For OO/HO and larger scales. This economical value pack contains approximately 5 metres of PowerBase centipede plates, 12 magnets and 12+ housings, plus 30+ blackened pan head screws to assist magnet mounting. (enough for 2-3 4mm scale locomotives).

DCC Concepts - PowerBase Expansion Pack (OO/HO Gauge)

Product Code: DCX-PBB

Production Details:

DCC Concepts PowerBase Expansion Pack. For OO/HO and larger scales. PowerBase extension pack. Contains 50x/5 Metres of PowerBase Centipede Plates. Usable with any track formation, set track, flex track and any track brand. Usable with all track radii. Includes mounting pins and spare magnet housings.

DCC Concepts - PowerBase Mounting Etches (35) (OO/HO Gauge)

Product Code: DCX-PBEX

Production Details:

DCC Concepts PowerBase Mounting Etches (35). Some locos, especially those with irregular base plates or large wheels may need to use a different mounting position to keep the magnets closer to the track. This etch contains 35 etches in various sizes to make mounting easy - the light material used keeps it subtle.

DCC Concepts - PowerBase Magnet Pack (OO/HO Gauge)

Product Code: DCX-PBM

Production Details:

DCC Concepts PowerBase Magnet Pack. For OO/HO and larger scales. Contains 12 magnets and 12+ housings, plus 30+ fine blackened pan head screws to assist magnet mounting.

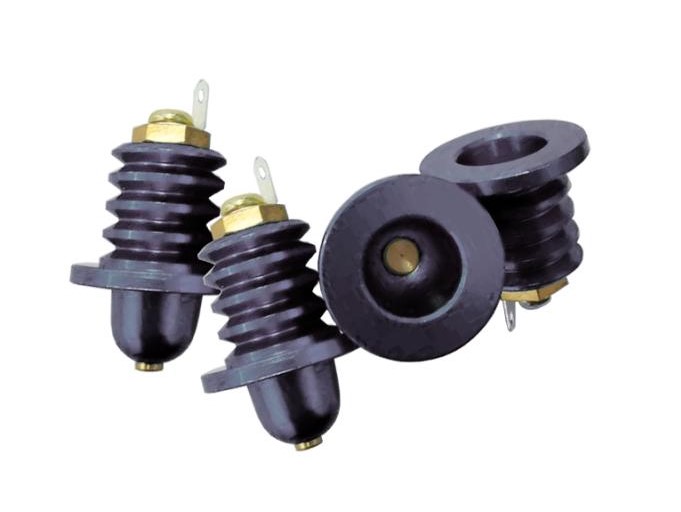

DCC Concepts - Legacy Models PowerPoint Baseboard Dowels (2-Pack)

Product Code: LM-PP.2

Production Details:

Legacy PowerPoint Baseboard Dowels (2 Pack). 2 pairs of precision baseboard alignment dowels. These are the BEST alignment dowels ever offered – now with POWER BUS CONNECTIVITY! Easier to install accurately than any other… All that is needed is a pilot drill and a 13mm and 19mm spade bit. Hard alloy, heavily passivated for zero corrosion means very long life, and the tolerances are so fine there is NO movement possible once they are installed. 2 pairs is enough to make one joints (joins two baseboards together). Electrical connections are GOLD to guarantee fault-free performance every time!

DCC Concepts - Legacy Models PowerPoint Baseboard Dowels (4-Pack)

Product Code: LM-PP.4

Production Details:

Legacy Power PointBaseboard Dowels (4 Pack). 4 pairs of precision baseboard alignment dowels. These are the BEST alignment dowels ever offered – now with POWER BUS CONNECTIVITY! Easier to install accurately than any other… All that is needed is a pilot drill and a 13mm and 19mm spade bit. Hard alloy, heavily passivated for zero corrosion means very long life, and the tolerances are so fine there is NO movement possible once they are installed. 4 pairs is enough to make two joints (joins three baseboards together). Electrical connections are GOLD to guarantee fault-free performance every time!

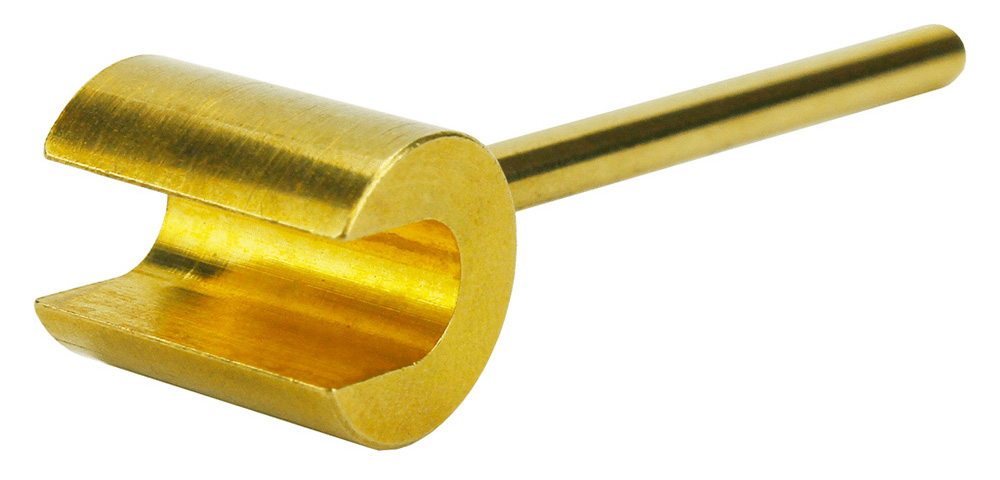

DCC Concepts - Back to Back OO/HO (Standard) 14.5mm

Product Code: DCG-BB145

Production Details:

Brass back-to-back gauge for Standard OO and HO ready to run, plus models built using BRMSB wheel standards OR running on pointwork built using OO-SF standards for common crossing and related gauging. Back to Back OO/HO (Standard) 14.5mm.

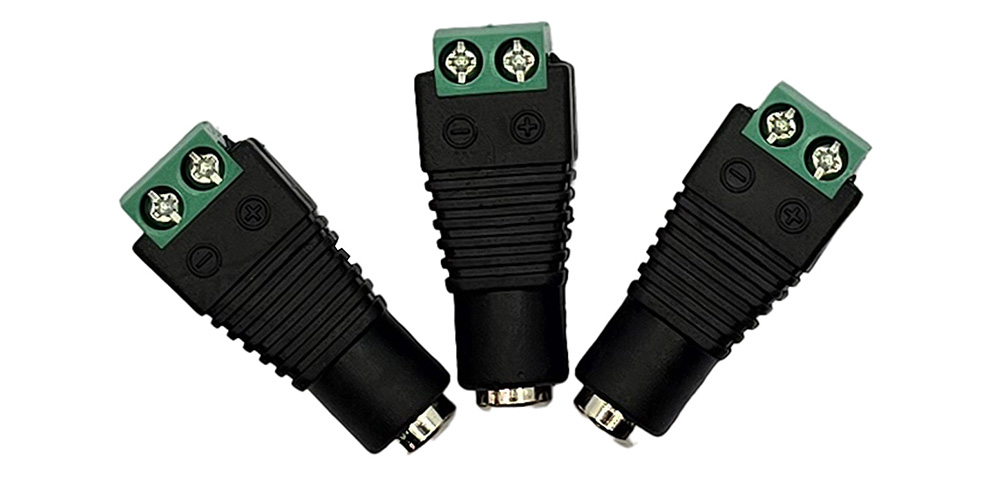

DCC Concepts - Cobalt Barrel-Plug Adapter (3 Pack)

Product Code: DCP-CBA.3

Production Details:

A pack of three coaxial DC barrel plug adapters that will let you connect bare wires to a DC-plug fitted power supply that takes away the need to cut the plug off and get the soldering iron out. Suitable for the following DCCconcepts power supplies: ● DCP-PS12, ● DCP-12.3.XX, ● DCP-18.2.XX, ● DCP-18.5.XX.
